MSW incinerator 200t/d ~300t/d
Tenor Low Carbon New Energy Technology (Liaoning) Co., Ltd. was founded in 2021, the company is located in Dalian City, Dalian University of Technology Industrial Incubation Park, the production base is located in Yantun, Paoai Village, Wafangdian City, Liaoning Province. Our company covers a total area of 500,000 square meters, more than two hundred employees, with fixed assets of 500 million yuan, more than 400 sets of major production equipment, machining, riveting and welding, casting, assembling and other production workshops, with two advanced The company has two advanced Disha casting production lines in Denmark, supporting automatic spheronization automatic equipment and spectral monitoring equipment, and the quality of products is at the leading level in China.
The company's main business includes the Design, Production, Technology development and Sales of complete sets of waste incineration treatment equipment, the company has long cooperated closely with Harbin Institute of Technology, Dalian University of Technology, Nanjing University of Science and Technology and other renowned universities, with reliable professional technical support, experienced design team, to provide customers with high-quality products.

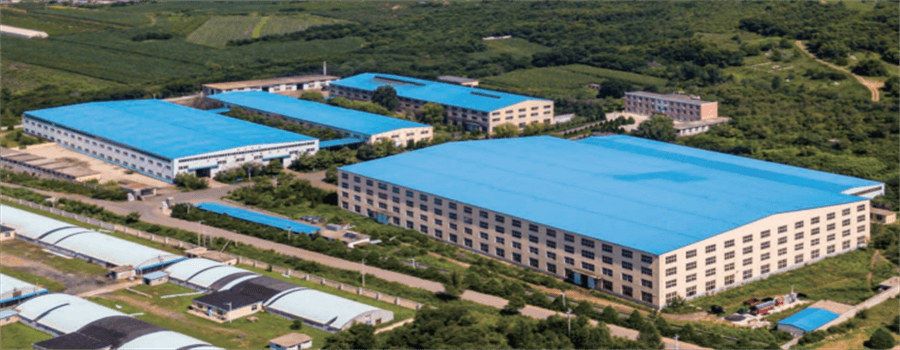

Our Production base

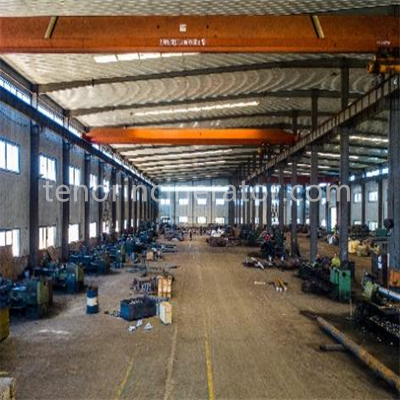

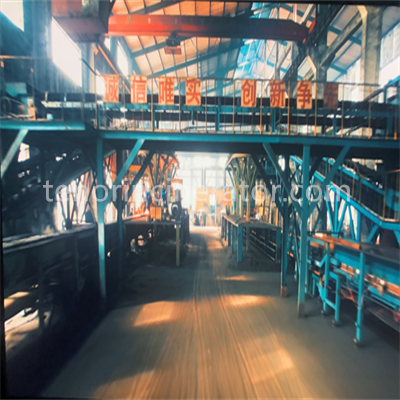

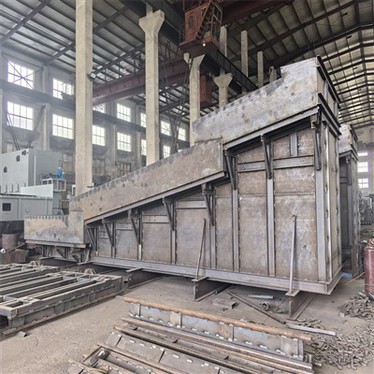

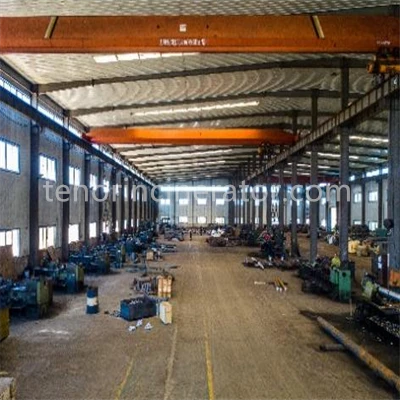

Production workshop
Product Introduction
1.Process description of the waste incineration system

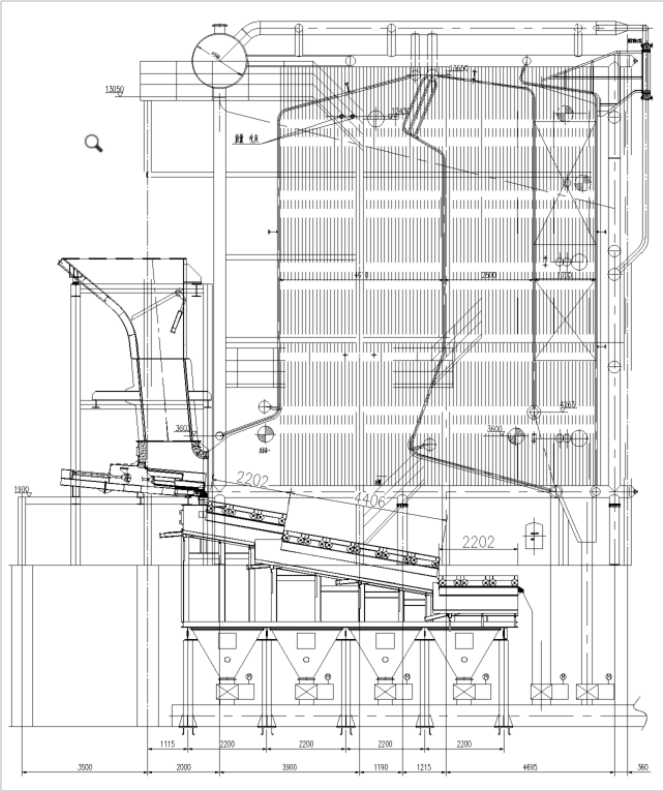

Tenor waste incineration grate is developed by Tenor Low Carbon New Energy Technology (Liaoning) Co., Ltd. The incineration system consists of feeder, grate, ash hopper, ash conveyor and slag remover, and it is suitable for the domestic waste incineration projects with a daily capacity of 30~600 tons.

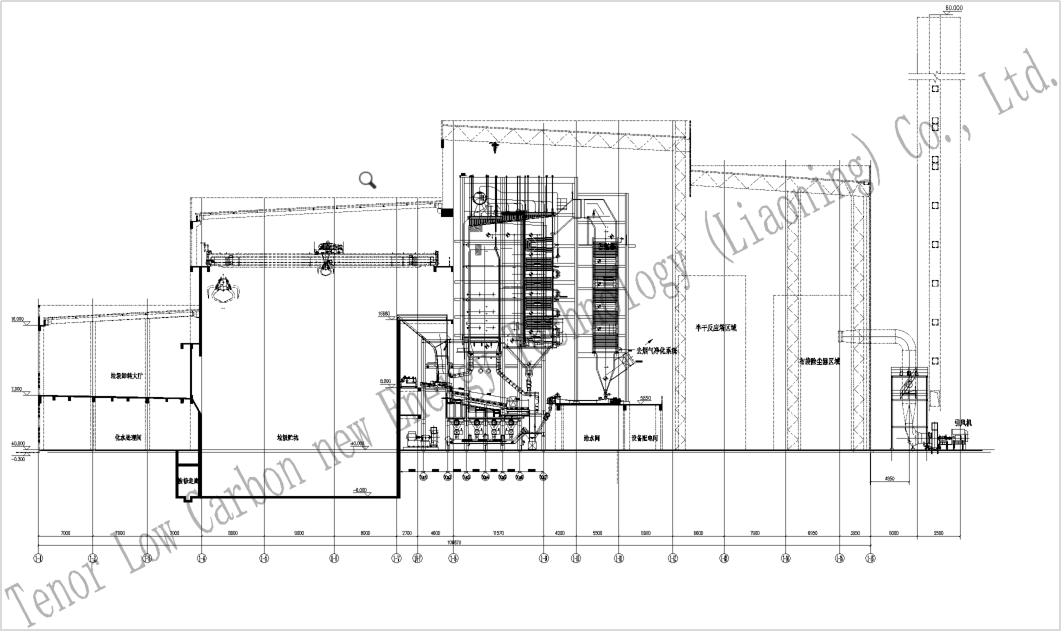

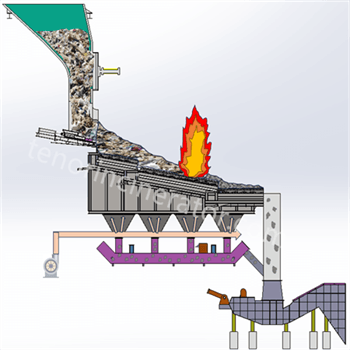

Process Flow Diagram
2.Main equipment

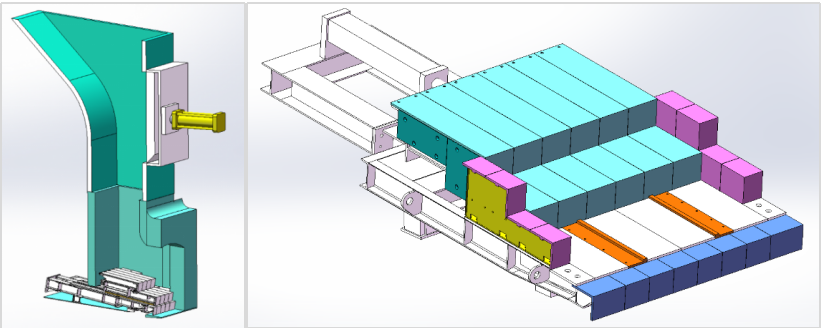

Hopper & feeder
Feeding system consists of hopper and feeder, hopper internal gate, the gate to ensure the sealing at the same time to take into account the function of breaking the bridge, in the garbage clusters bridge blocked hopper through the gate movement to realize the bridge. The feeder and the gate are driven by cylinders to push a certain amount of garbage into the incinerator through periodic reciprocating push and pull movements, and the feeder can adjust the feeding speed according to the load of the incinerato.

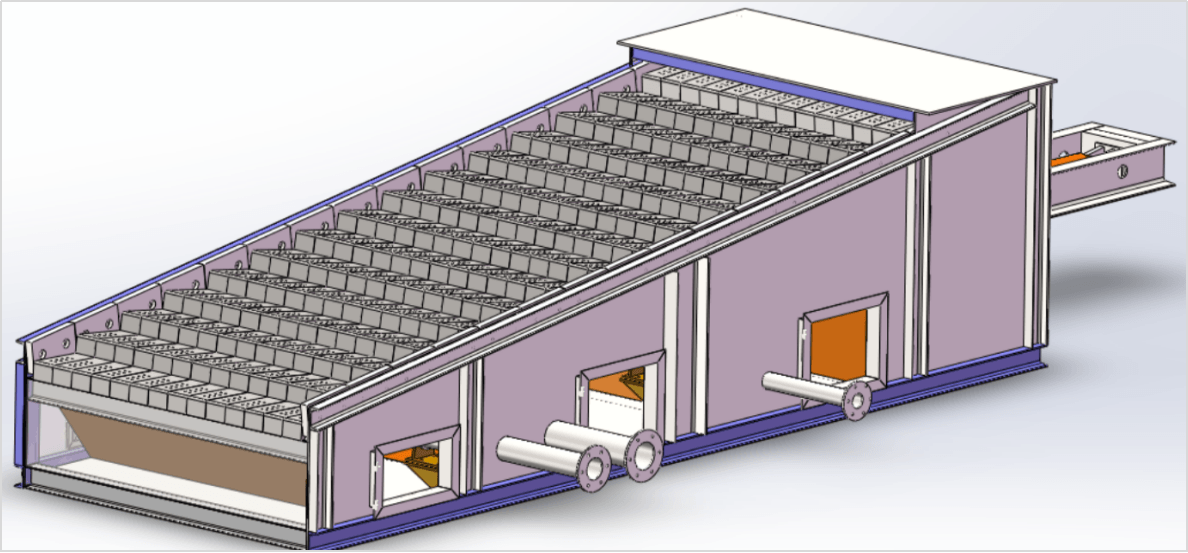

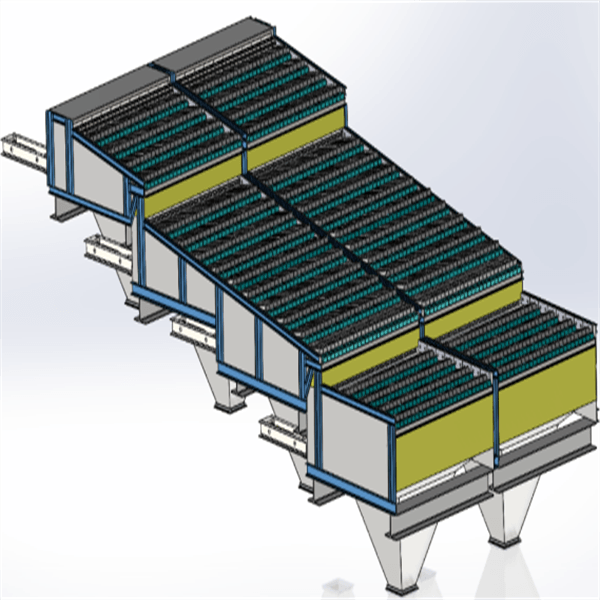

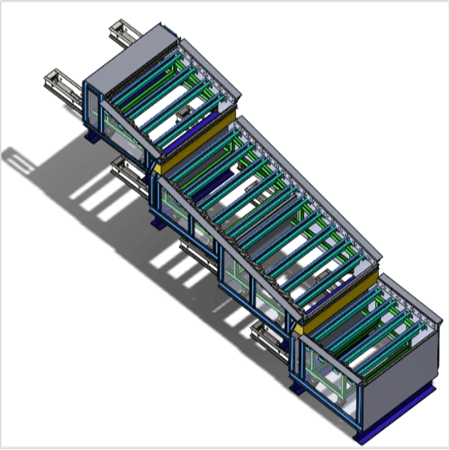

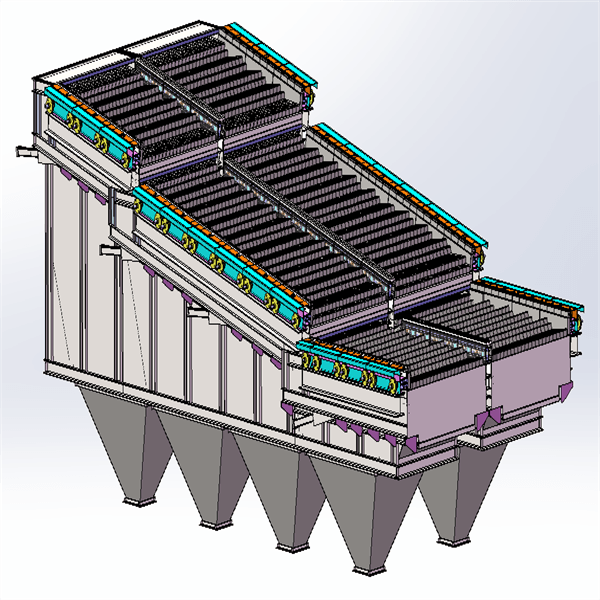

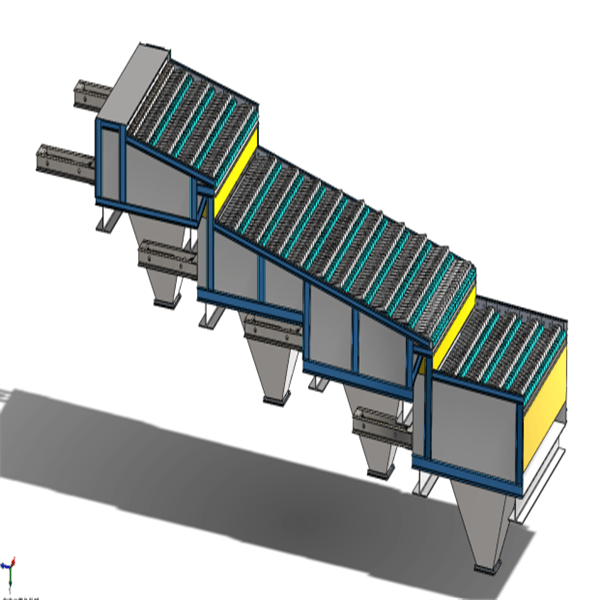

Step Grate

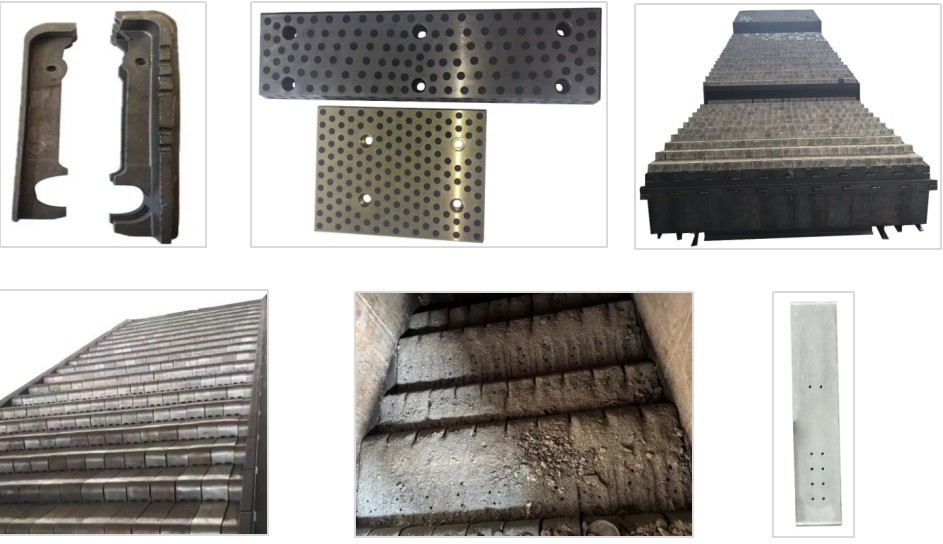

Tenor garbage incineration grate is a downward-pushing stepped inclined reciprocating grate, the grate is divided into three stages of drying, combustion and burning out, and a height difference is set between each section of the grate, so that the garbage is scattered after falling and the garbage is pushed to move, and at the same time the garbage is prevented from gathering together to lead to incomplete combustion. The step grate is driven by hydraulic cylinders, and the three sections of the grate can be controlled independently, so that the movement cycle of the grate can be adjusted according to the combustion state in the furnace. The grate is made of heat-resistant cast steel, which has good wear-resistant, high temperature-resistant and corrosion-resistant properties.

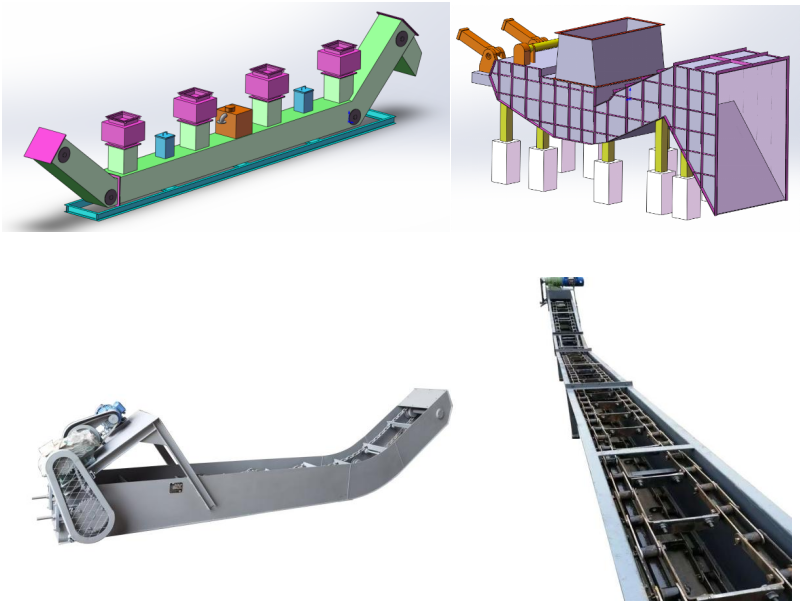

Ash conveyor, slag remover

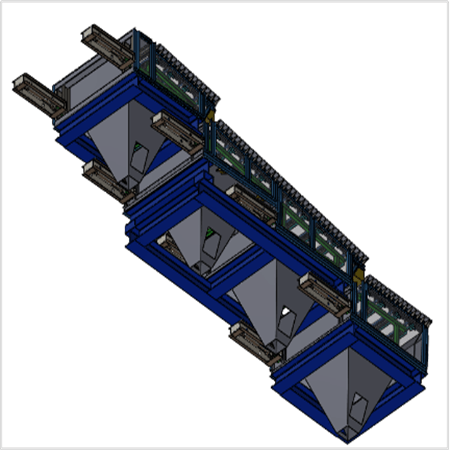

The ash system consists of an under-furnace ash hopper (cum air chamber), a horizontal ash conveyor, and a slag remover. The small amount of fine ash produced after complete waste combustion falls into the ash hopper through the grate gap and then collects in the horizontal ash conveyor. The main ash produced by waste combustion is pushed into the slag bucket through the grate of the combustion section, and then enters the wet slag remover together with the fine ash. All the ash is sent to the slag pit by the slag remover.
3.rocess Characteristics
- Simple structure, easy to operate and maintain;
- The grate is resistant to high temperature, corrosion and abrasion, with low replacement rate;
- Even air distribution of the grate, uniform combustion of garbage;
- Adequate garbage incineration, thermal scorch reduction rate ≤5%;
- Equipment modularization, easy installation, short construction period;
- The equipment is fully automated.
4.scope of services
Reliable waste incineration equipment
Complete waste incineration process solution
Application solution
|
CAPACITY |
Technological Process |
Basic Parameter |
Scope of Application |
|
200~300t/d |
Waste into the furnace → incineration → waste heat boiler → flue gas treatment → standard discharge, steam used for power generation |
Daily processing capacity: 200~300t Superheated steam capacity: 16~30t/h Annual power generation: 32~48 million kwh |
The project with a daily processing capacity of 200~300t is suitable for harmless treatment of domestic waste in counties and waste heat recovery, and is equipped with a 20~30t/h superheated steam boiler + 4~6MW steam generator set. |
project case

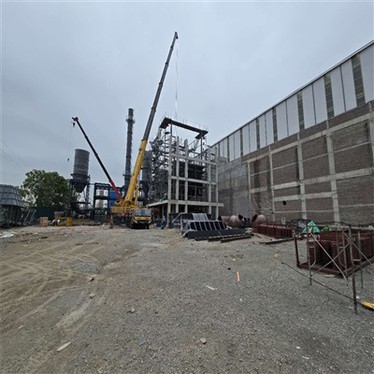

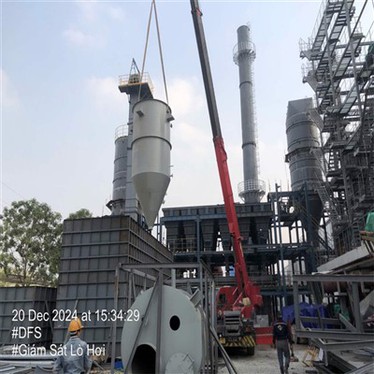

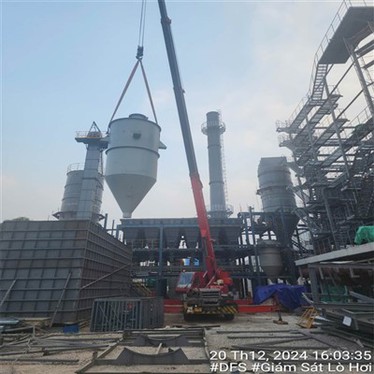

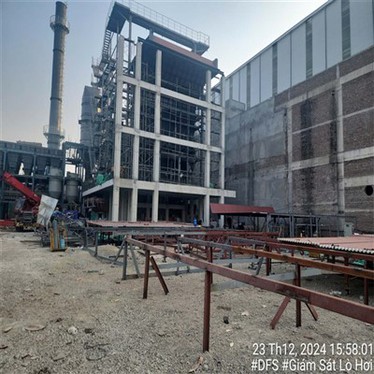

Hanoi City, Vietnam, 600t/d Waste Incineration Power Generation Project (large waste incineration power generation project)
The 600t/d waste incineration power generation project in Ho Chi Minh City, Vietnam uses our three-step inclined reciprocating grate furnace for daily treatment of 600t waste, with 75t/h steam boiler +18MW generator set. The project is currently under construction.
Vietnam Ho Chi Minh City 70t/d domestic waste incineration project
The solid waste incineration project in Ho Chi Minh City, Vietnam uses our three-step inclined reciprocating grate furnace to process 70t of solid waste per day. The equipment is in production.

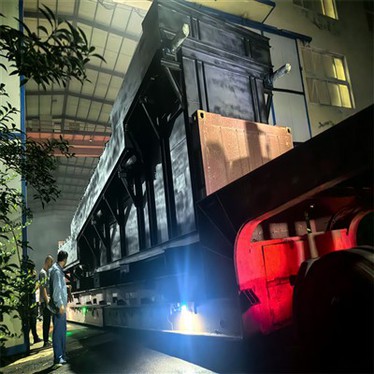

70t/d domestic waste incineration grate

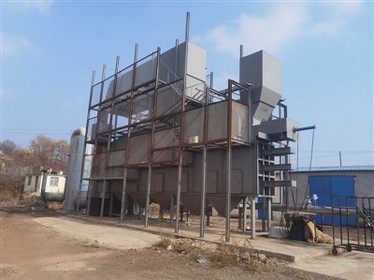

Zhengxiangbai Banner Rural Herdsmen Living Environment Improvement Project (Tsinghua University) (Small waste Incineration equipment)
Zhengxiangbai Banner rural herdsmen living environment improvement project.
adopts our tilted reciprocating stoker to treat 30tons of domestic waste per day. The project is currently under construction.
