Why Choose Us ?
Tenor Low Carbon New Energy Technology Co., Ltd. developed a small waste incineration systems with the research team at Dalian University of Technology. WTE incineration systems include a hopper and feeding machine as well as stoker, step grates, ash hoppers, slag removal systems, transport aircraft, combustion chambers, and slag hoppers.
What is Industrial Garbage Incinerator?
Incinerators for industrial waste are a specific type of equipment used to burn industrial waste. These incinerators can handle a variety of wastes, including hazardous waste and non-hazardous. An industrial garbage incinerator's primary purpose is to reduce waste volume and destroy harmful substances. Incineration involves heating waste materials at high temperatures. This causes them to oxidize, and then break down into simpler substances. The gases and ash are treated to remove pollutants before they are released into the atmosphere. In industries like manufacturing, chemical processing and energy production, industrial garbage incinerators can be found.
Products Description
The construction and development of municipal solid waste incineration plants are of great significance to deal with urban waste disposal problems. They can not only effectively reduce the amount of garbage, but also reuse resources through power generation and other methods, and also help improve the ecological environment quality of the city. However, the construction and operation of waste incineration plants also need to take into account environmental standards to ensure the harmlessness of emissions, and take corresponding measures to reduce possible air pollution.
Products Parameters
Main equipment
Grate advantages:
High efficiency stable combustion:
The garbage is fully burned, the thermal ignition reduction rate is low,Equipment performance: The grate has good wear resistance, high temperature resistance and corrosion resistance, low damage rate, low replacement frequency and low maintenance cost.The pores and gaps are matched with air inlet, and the overall air inlet effect is more uniform, which is conducive to uniform combustion and stable combustion.
Solid waste incinerator process flow
Following the garbage in the furnace, the three sections: burning, drying and burning out are carried out with certain temperature and pressure. Following the trash into the furnace, the three sections are: burning, drying and burning off, under a pressure and temperature.
The ash from the combustion of garbage is pumped into the wet-slagging machine via the slagging bucket, and the remainder goes to the slag pit. The horizontal conveyor for ash leakage is attached under the air-chamber, and small amounts of slag and ash under the grates are then sent to the machine that removes wet slag.
The combustion flue gas enters through the throat into the second combustion chamber. Secondary air is then added in the throat for the purpose of adjusting the furnace's temperature, ensuring complete combustion, and controlling the production of nitrogen dioxides.
It is possible to choose between hot water, steam, or electricity production according to project size and cost benefits. Deacidification of the flue gas is done after it has been cooled by heat transfer.
Process charateristics
- Simple structure ,easy installation and operation;
- All equipment automation; Reduce the working load of the furnace personnel;
- Low total building height and low construction cost;
- The secondary combustion chamber adopts spiral dust removal structure and Tesla valve to reduce the fly ash content in the flue gas, reduce the subsequent dust removal cost, and extend the service life of the equipment.
- The waste combustion is sufficient, and the heat burn reduction rate is less than 5%;
- Pollutant emissions meet standards.
- Customized complete proposal and turn-key WTE equipment.
Waste to energy project display
garbage incinerator 50 tons/d
Benefite of Waste Management
MSW incinerator can produce steam, hot water and electricity generation, sustainable Power from Small-Scale Waste Incineration.
Application:Township, cities and towns, government, power plant.
Delivery Process
Construction
Discharge hall entrance

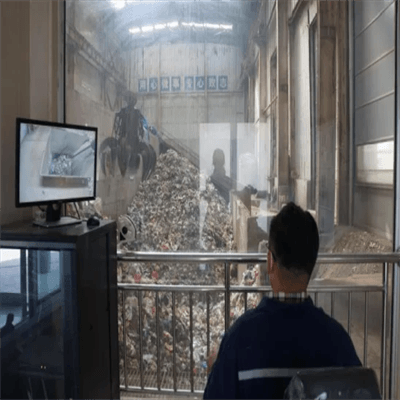

Garbage pit and grab buc

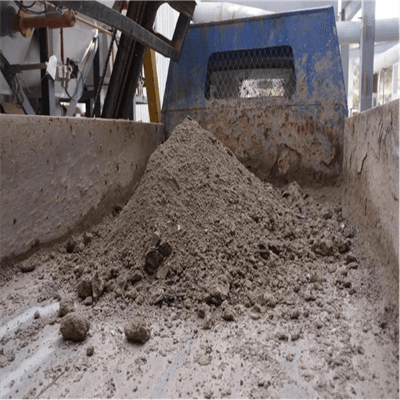

Ash

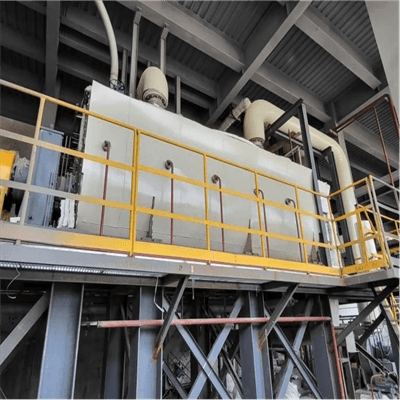

Sludge dryer

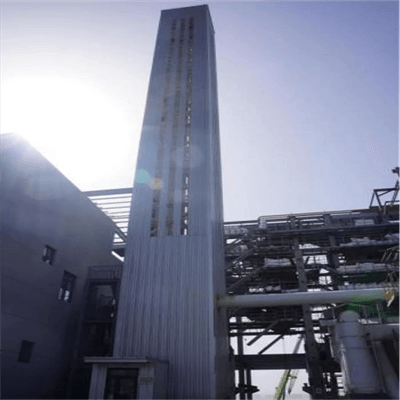

Chimney

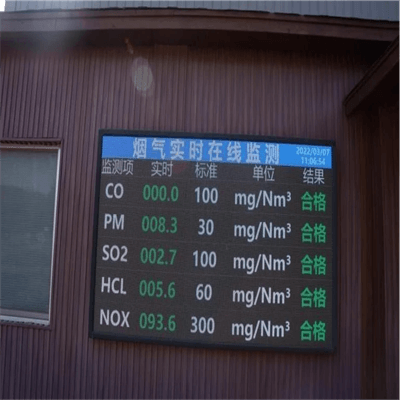

On-line monitoring of flue gas

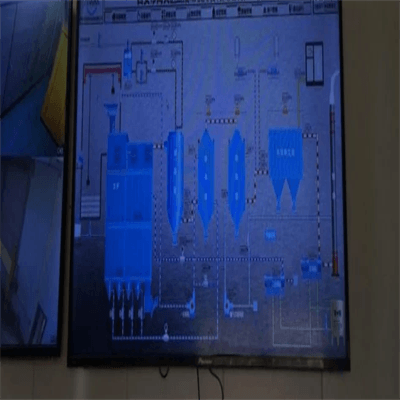

Equipment control system

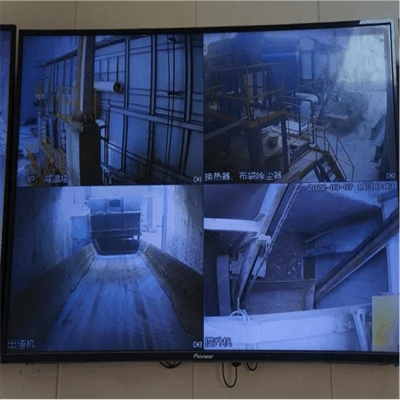

Equipment monitoring system
Incineration process
FAQ
1. who are we?
We are based in Liaoning, China, start from 1998,sell to Domestic Market(43.00%),Southeast Asia(14.00%),South
America(11.00%),South Asia(10.00%),Eastern Asia(8.00%),Africa(6.00%),Northern Europe(4.00%),North America(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Chain Grate Stoker,Slag Remover,Coal Hopper,Coal Conveyor,Accessories for Chain Grate Stoker,Casting Products
4. why should you buy from us not from other suppliers?
We have 22 years experience of manufacturing grate stokers for boiler companies. mould design+welding+machining+precision castings
We have Five workshops and three casting plant, advanced -equipped TWO DENMARK DISA CASTING LINES, SHELL CASTING ETC.
5. what services can we provide?
Accepted Delivery Terms: CIF;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Japanese
